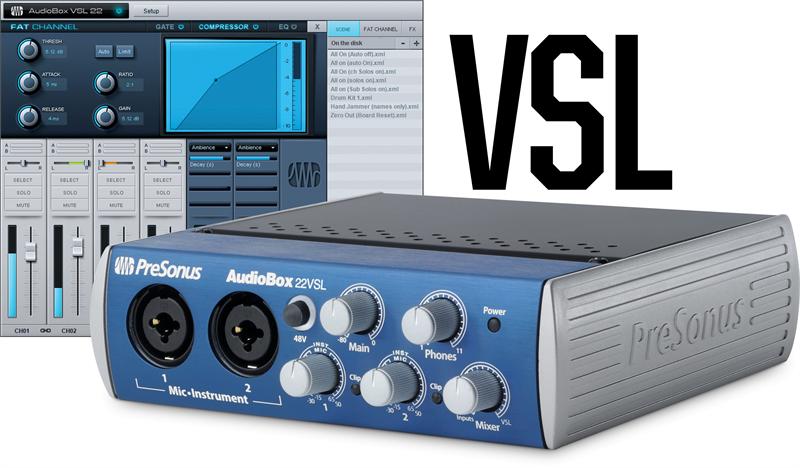

PreSonus AudioBox 22VSL

Using your computer CPU and PreSonus Virtual StudioLive (VSL) software, the AudioBox 22VSL interface provides a 4x2 mixer, reverb and delay effects, and the same Fat Channel compression, limiting, semi-parametric EQ, and high-pass filter, as the PreSonus StudioLive™ 16.0.2 digital mixer— all with inaudible latency.

• Input/Output
  • 2 dual-purpose front-panel input channels, each with:
    • Combo XLR mic and balanced ¼" instrument input
    • Class A XMAX™ mic / instrument preamp
    • Individual channel-trim controls with 0 to +35 dBu mic gain range
  • 2 balanced ¼” main (L/R) line outputs
  • 1 stereo ¼” headphone output with level control
  • MIDI In/Out
  • 1 USB 2.0 port
• Meters, Controls, and Features
  • 48V phantom power for condenser microphones (global)
  • Mixer control (blends the input signal with the computer playback stream for zero-latency monitoring)
  • Main-output level control
  • Power/USB sync LED
  • LED clip indicator for each channel
  • Mix, adjust input and playback-returns levels, and add effects and signal processing from your laptop or other computer
• Digitalia
  • 24-bit resolution and 44.1, 48, 88.2, and 96 kHz sampling rate
  • Professional-grade A/D/A converters (+114 dBu dynamic range)
  • Zero-latency analog monitoring with playback/input Mix control knob
  • Mac®- and Windows®-compatible, including Mac OS X 10.7 Lion and Windows 7
  • Supports ASIO, Core Audio, Direct Sound (Windows XP), Windows Audio Session API (Windows Vista and Windows 7)
• Physical
  • 1/3U rack-mountable (screw-mount to standard rack tray, not included)
  • Road-rugged construction with all-metal chassis and metal knobs
  • Weighs just 1.6 lb. (0.7 kg)
  • Powered via USB bus—no wall wart!
• Bundled Software
  • Virtual StudioLive™ (VSL) ultra-low-latency control and effects software for Mac® and Windows®; manages:
    • Near-zero-latency monitoring with extensive signal processing
    • 4x2 DSP mixer
    • StudioLive™16.0.2 Fat Channel compressor, limiter, expander, high-pass filter, and semi-parametric EQ for each analog input, and analog output and its DAW return
    • 2 stereo effects buses with reverb and delay
    • More than 50 Fat Channel DSP presets for enhancing instrument and vocal recordings
• Studio One^®Artist 2
  • PreSonus’ revolutionary digital audio workstation for Mac and Windows, with unlimited track count and 10+ GB of third-party resources. With Studio One's Nimbit^® extension, you can immediately start selling your music.
